Digital Electricity™ Receivers
Digital Electricity™ Transmitters convert conventional analog electricity into Digital Electricity™ for
distribution from a centralized source to many endpoint loads to energize your application.

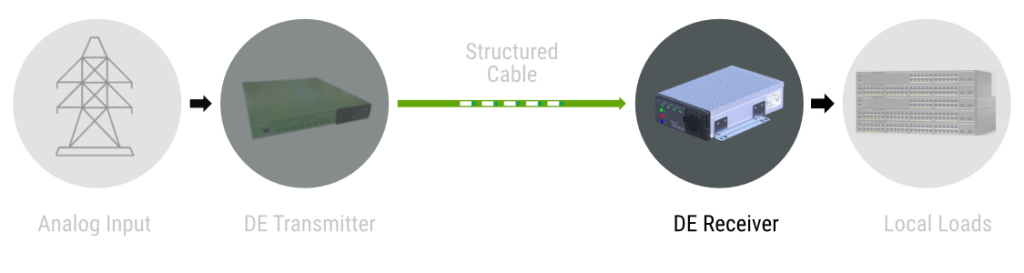

VoltServer Receivers are a component in a
Digital Electricity™ line powering system.
When paired with a VoltServer Transmitter unit, a Digital Electricity™ system is formed.
VoltServer Receivers are listed products, certified to safety and EMC standards by a Nationally Recognized Test Laboratory.
VoltServer Receivers are listed products, certified to safety and EMC standards by a Nationally Recognized Test Laboratory.
Receiver configurations are designed to support different output power options and environments:
• HVDC • 48-54VDC • 208VAC Universal

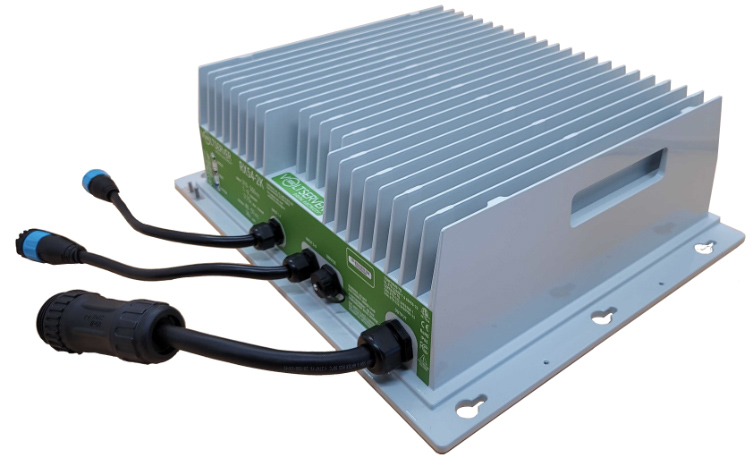

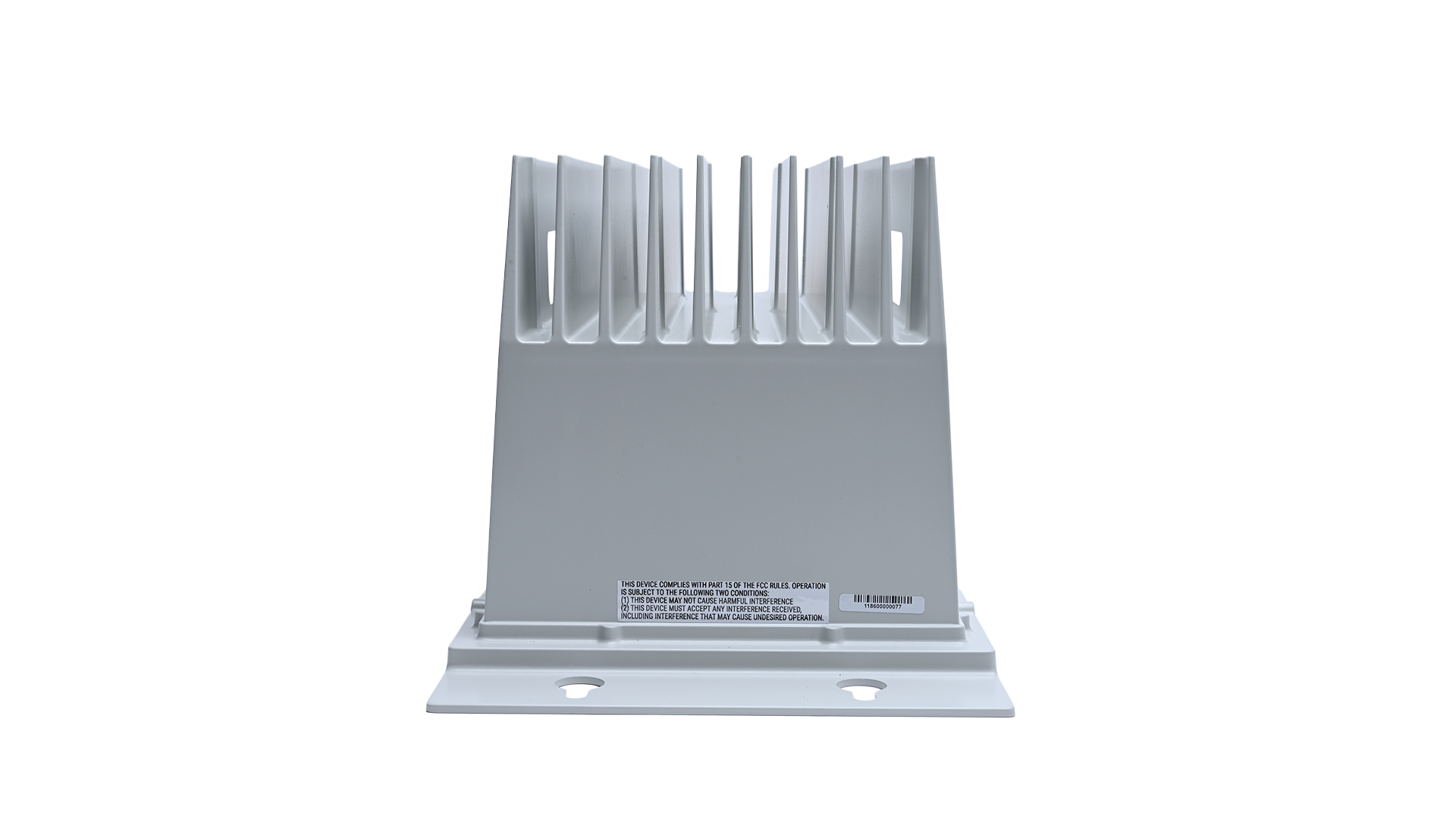

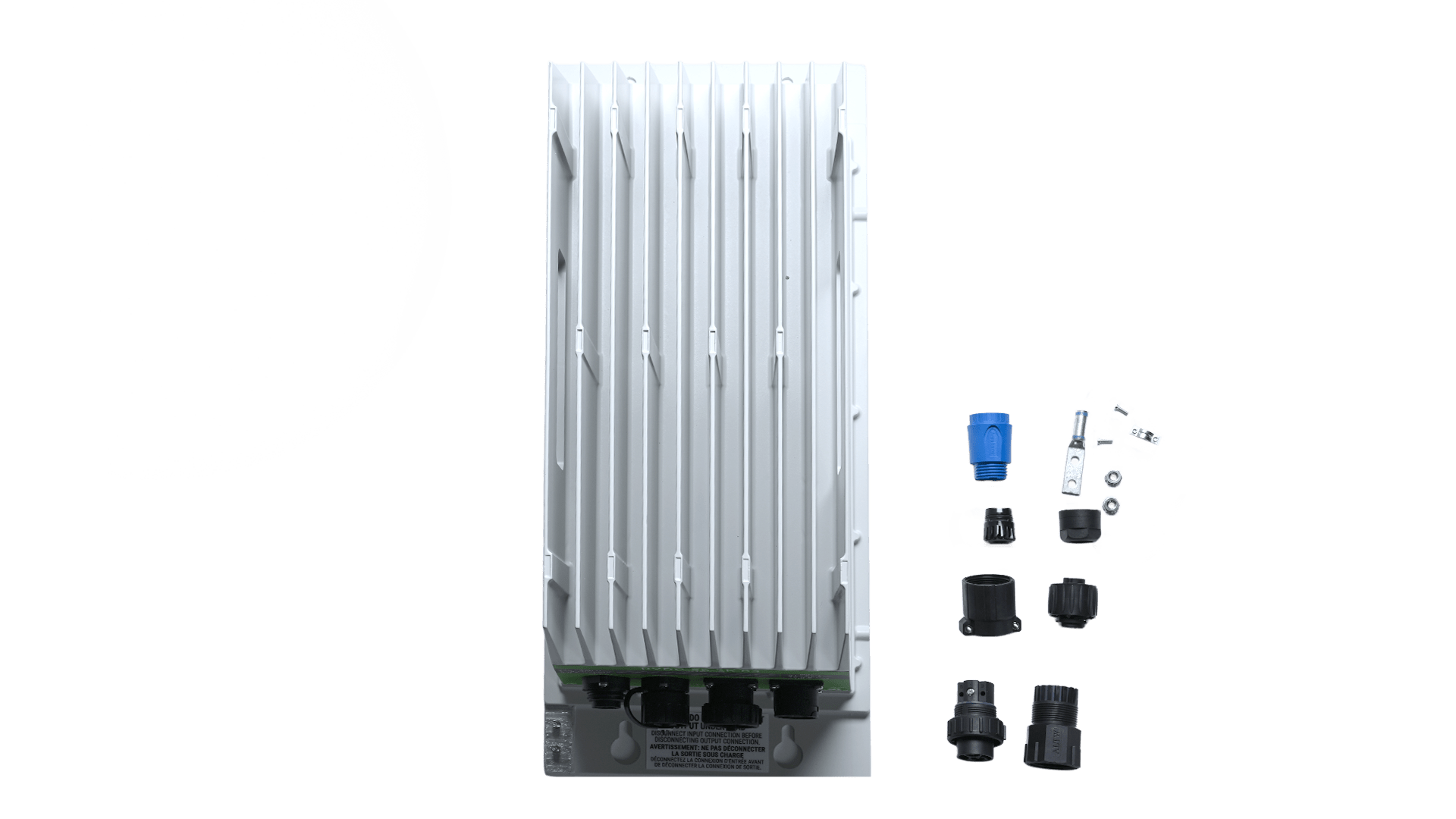

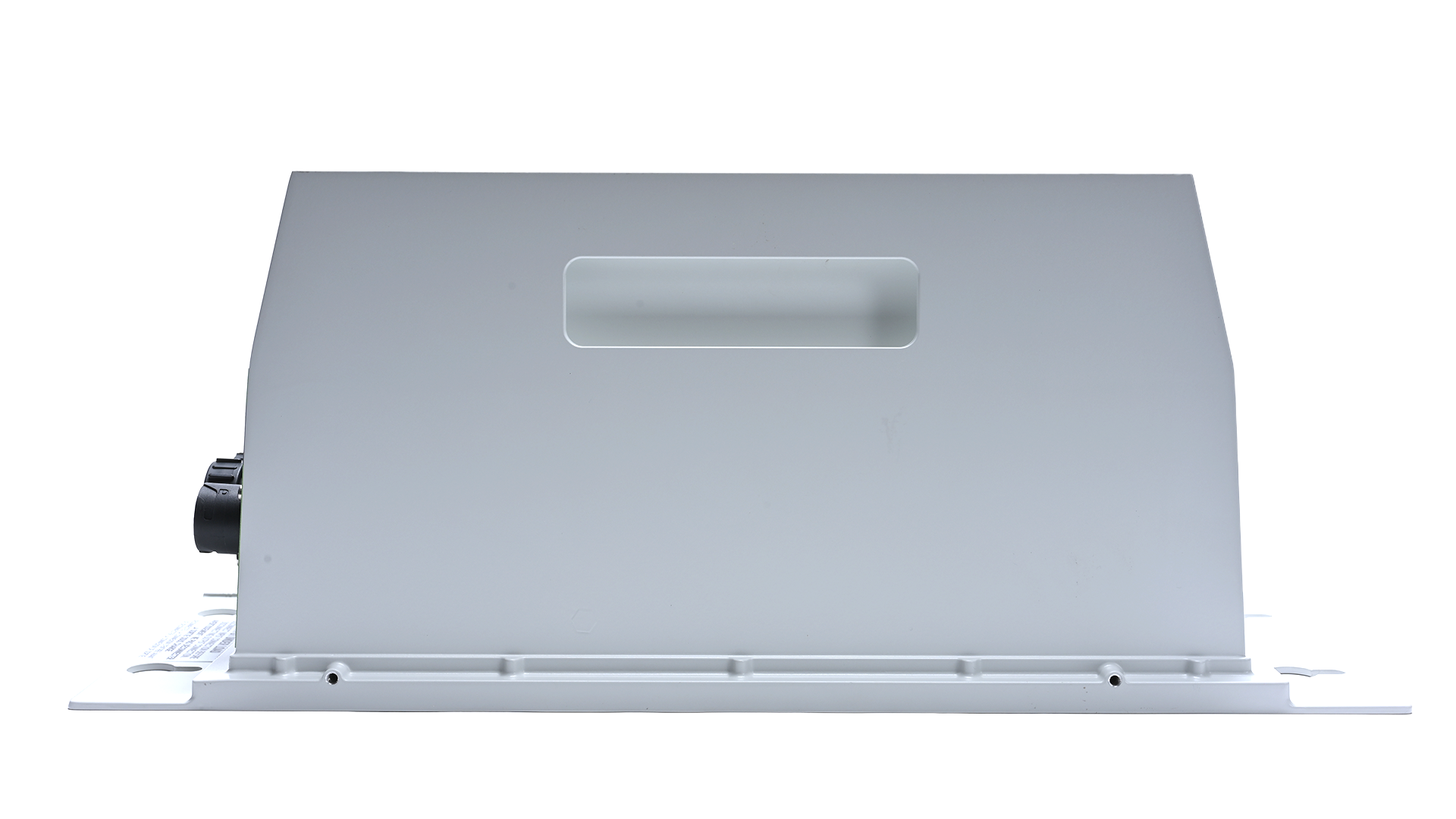

RX54-2K
Product Code: RX54-2K
Up to 2000W 54VDC Receiver • Takes up to 4 or 8 DE inputs • Single Output via IP65 connector

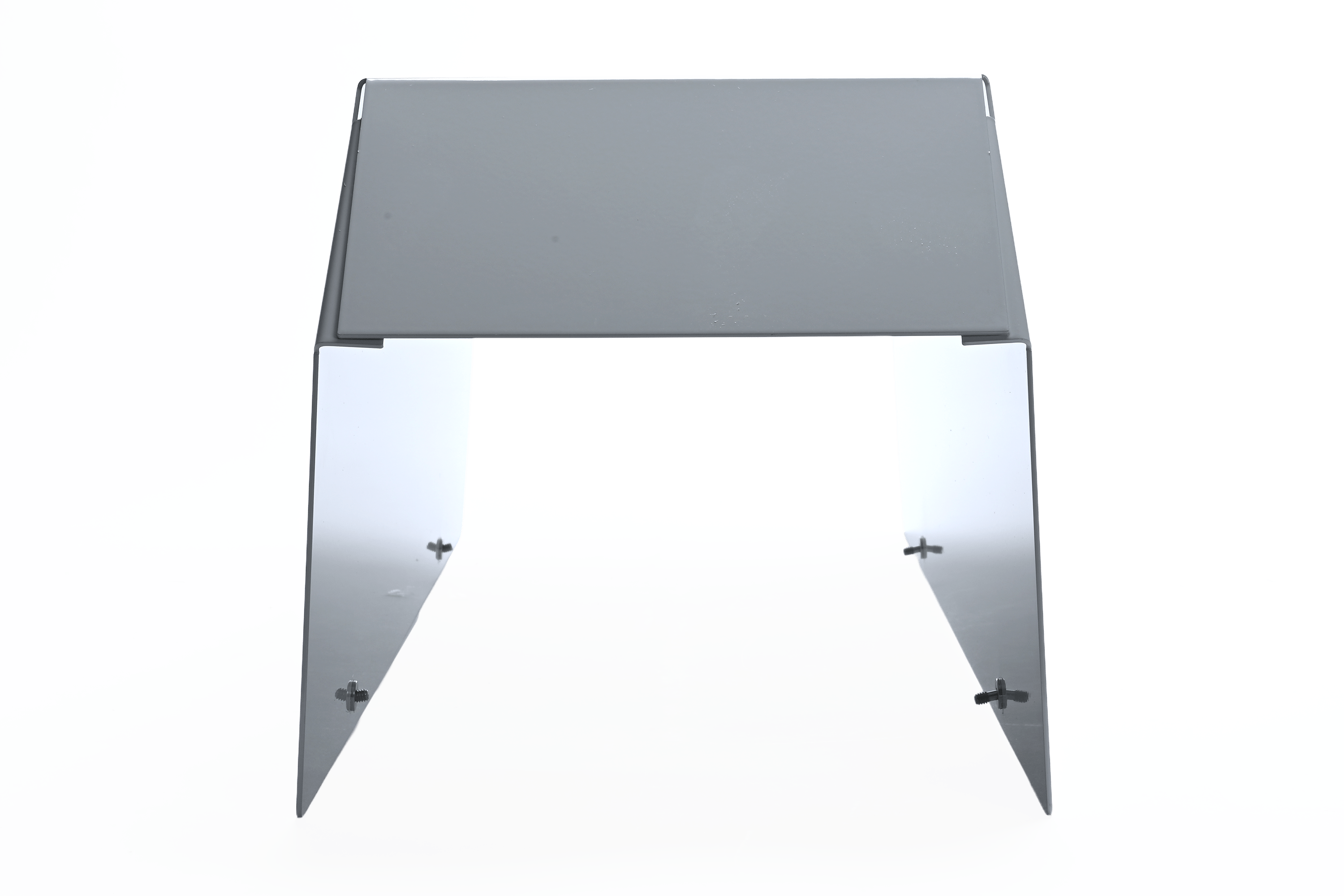

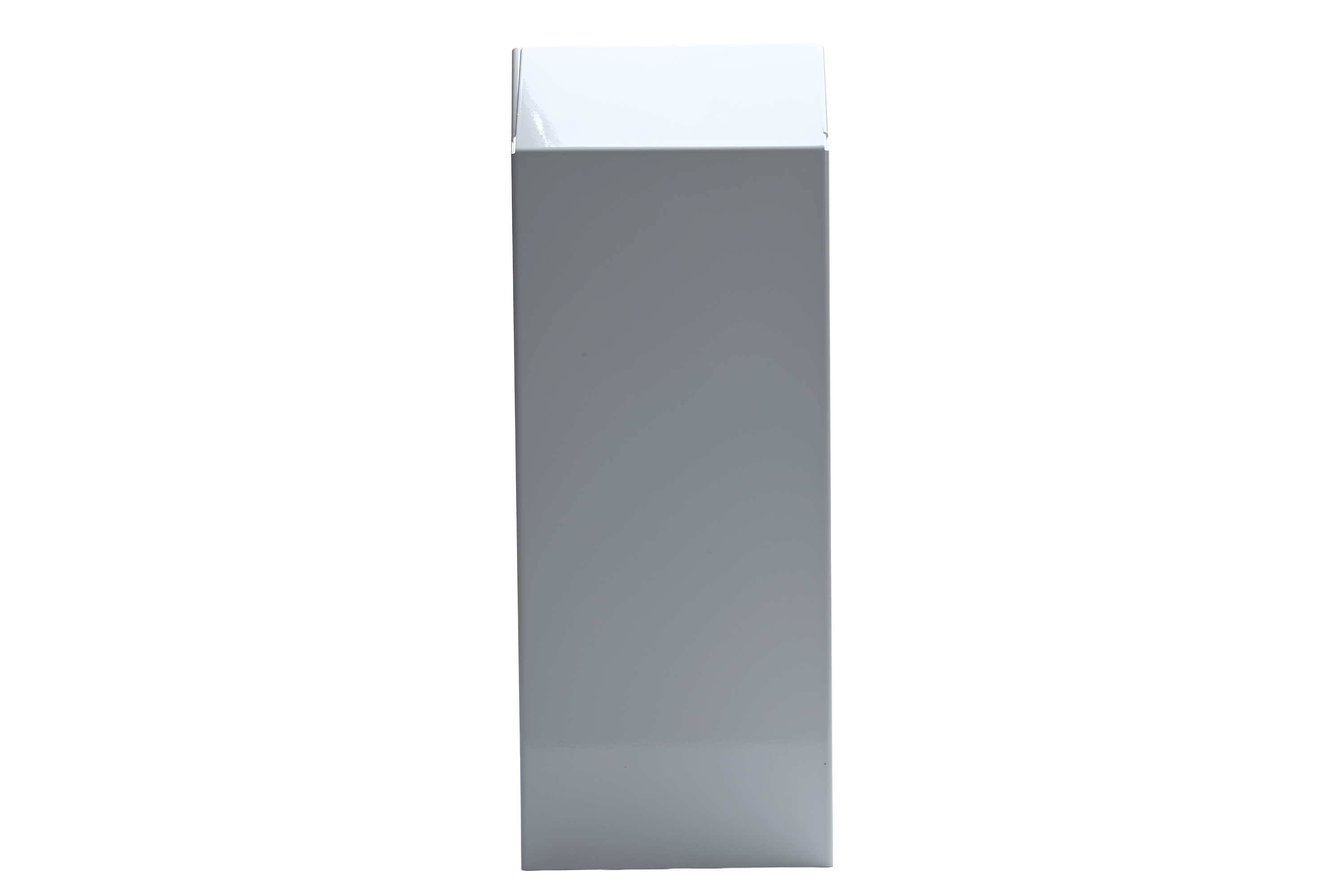

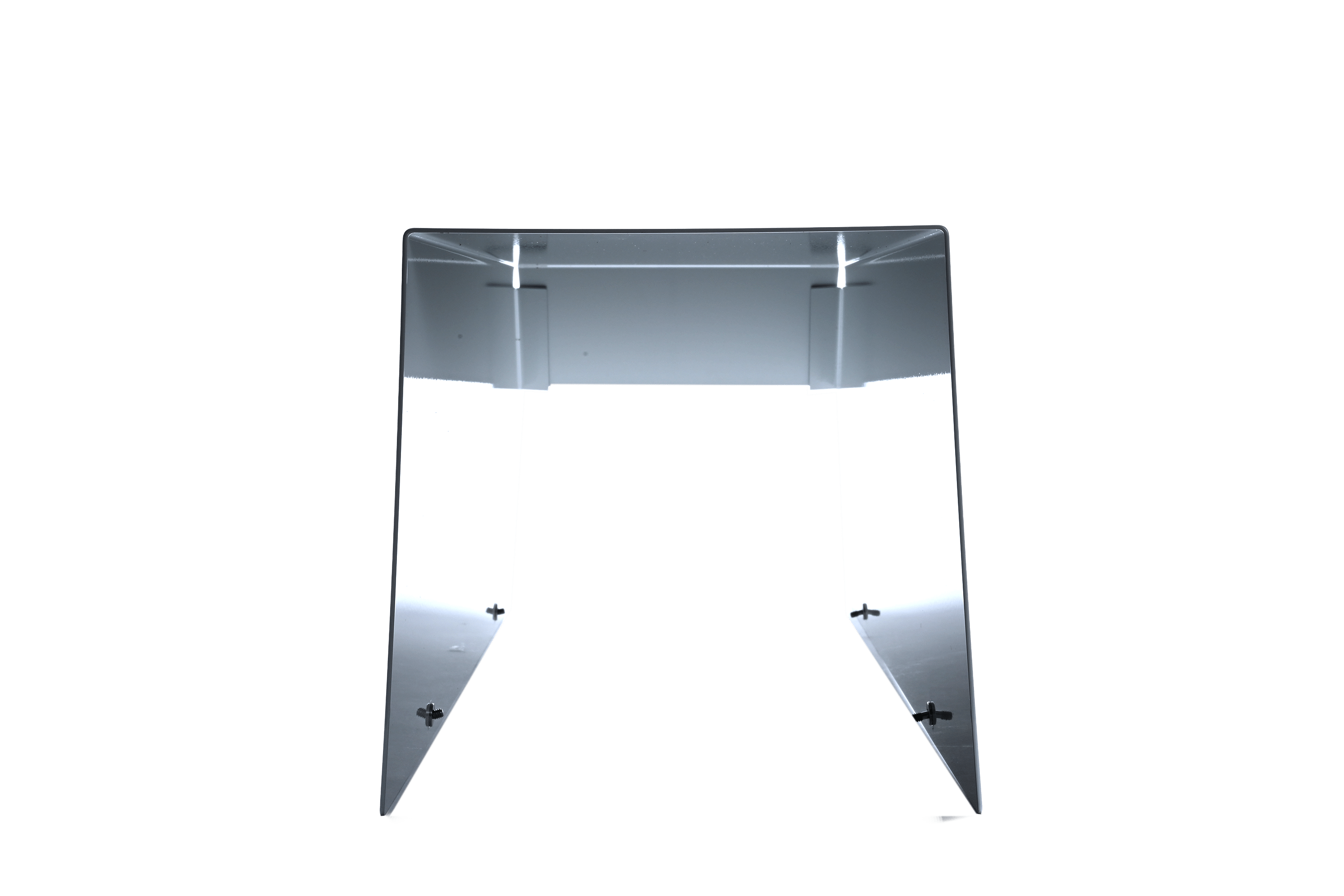

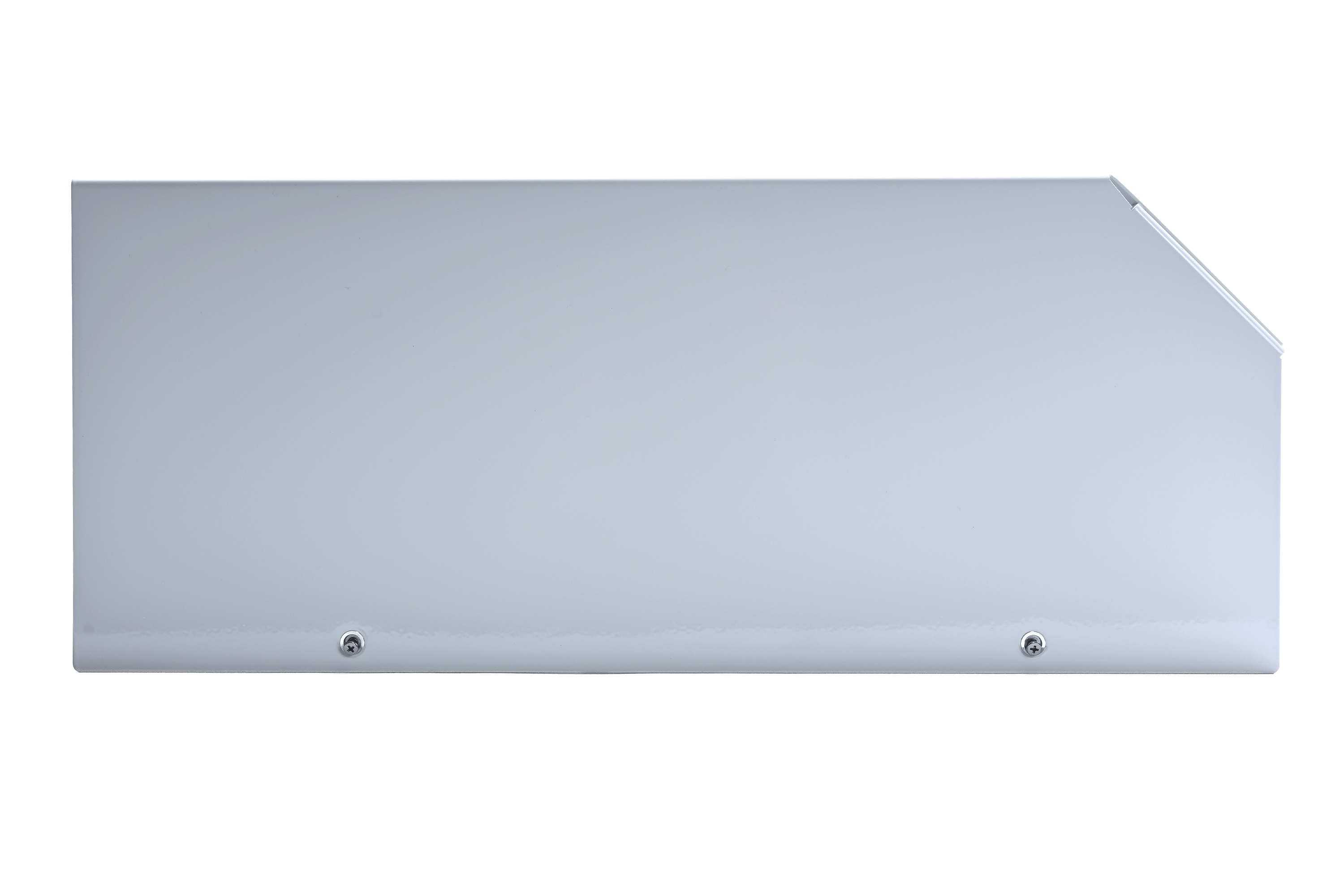

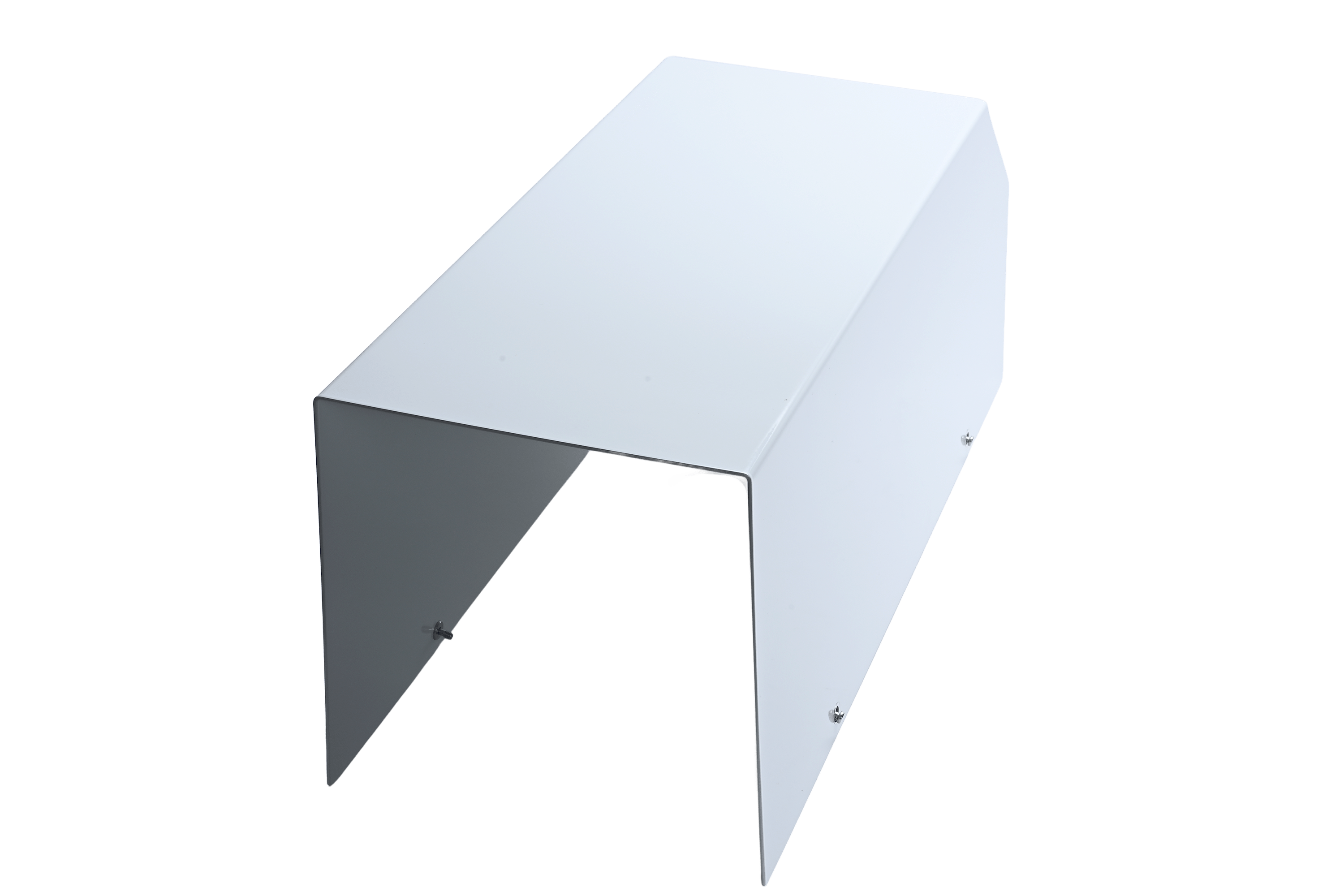

RX54-2K-SUNSHIELD
Product Code: RX54-2K-SUNSHIELD-01
RX54-2K optional sunshield.
To be used when RX54-2k is mounted outdoors in direct sunlight.

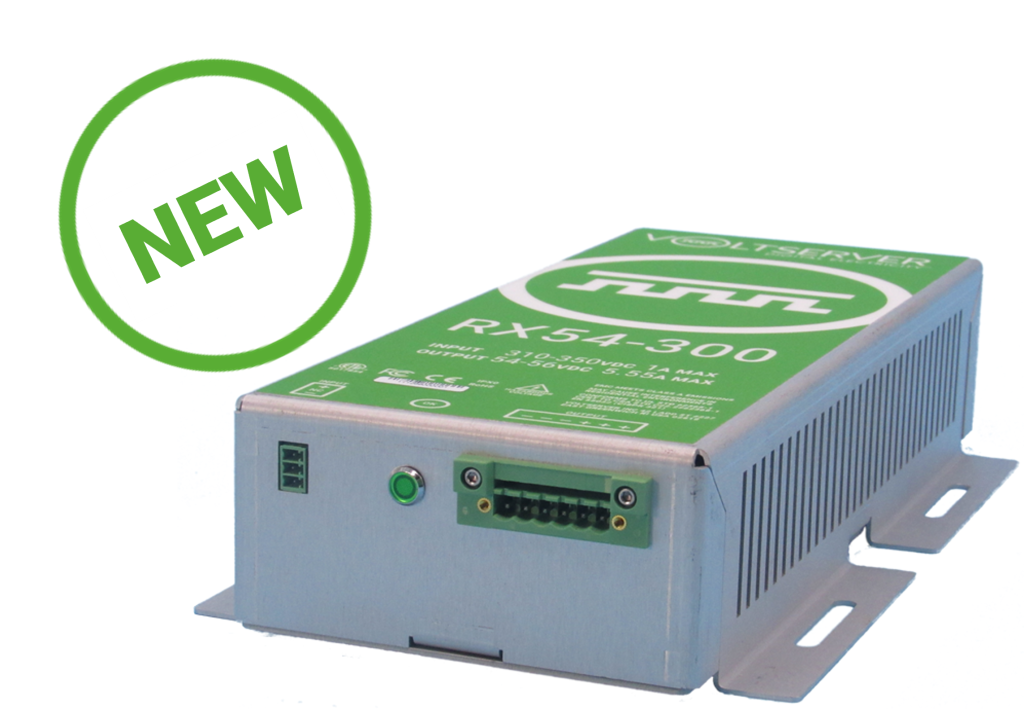

RX54-300
Product Code: RX54-300
300W 54VDC Receiver. Single Input from DE transmitter. Single output with 3 pairs of +ve & -ve connectors. Aggregate load not to exceed 300W. NOT RATED FOR OUTDOOR USE. Requires conditioned enclosure, or indoor deployments.

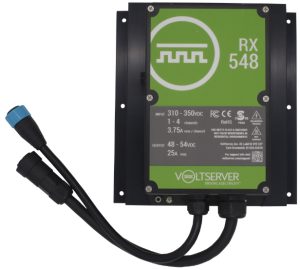

RX548
Product Code: RX548-VS
Up to 1200W LVDC output Receiver • Minimum 49VDC Output • Receives 1- 4 conductor pair from TX550 Line Cards • Powers up to two connected devices,

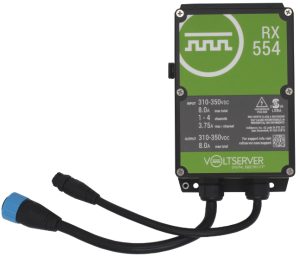

RX554
Product Code: RX554-VS
“Bridge Mode" Receiver - Receives 1-4 conductor pair from TX550 Line Cards • Powers up to two connected devices, maximum 2400W Aggregate

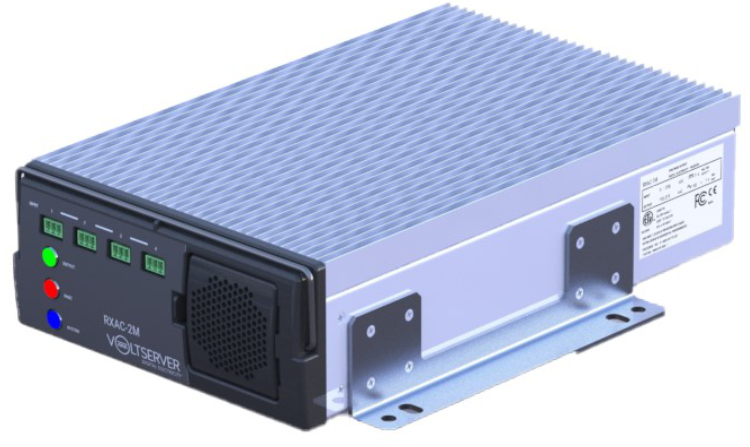

RXAC-2M
Product Code: RXAC-2M
1400W, 200VAC Sine Wave Output Receiver. Connects 2 to 4 DE Pairs from TX550 Cards. Two IEC C14 output Connectors. Includes (1) C14 to C15, 14AWG, 6FT Cable (PN: KITCBL-RXAC-C15) • Max Aggregate Load 1400W. • Includes wall mount brackets
RXAC-FAN-MODULE
Product Code: RXAC-FAN-MODULE
RXAC REPLACEMENT FAN MODULE
RXAC-SHELF
Product Code: RXAC-SHELF-01
2U, 19" Rackmount Shelf for 2xRXAC-2M Receivers
JBKIT-INPUT-DIN
Product Code: JBKIT-INPUT-DIN
Receiver Input DIN Rail for use in customer provided enclosures, or wall mounted, for RX55x, RX548, & RX54-xx receivers • Two groups of Four Pairs DIN Rail mounted Red/Black Phoenix Connectors. • Included Accessory Kit contains two gland for use when connecting to one or two DE Receiver at location.
ORDER Appropriate number of KITCBL for connected receiver
JBKIT-INPUT
Product Code: JBKIT-INPUT
Receiver Input Junction Box for RX55x, RX548, & RX54-xx IP65 secure enclosure with one terminated, 8 conductor DE Receiver Input Cable Mate pre-terminated on one of two groups of DIN Rail Mounted Phoenix Connectors, and glanded port for Riser/Distribution Cable. • Included Accessory Kit contains 2nd DE Receiver Input Cable and gland for use when connecting to 2nd DE Receiver at location. Connects to 2nd Phoenix position
JBKIT-OUTPUT-48V
Product Code: JBKIT-OUTPUT-48V
IP65 secure enclosure with RX548 Output Cable Mate, DIN Rail with Phoenix Connectors for LVDC distribution to two powered loads. Field Assembly Required
JBKIT-OUTPUT-HV
Product Code: JBKIT-OUTPUT-HV
IP65 secure enclosure with RX55x Output Cable Mate, DIN Rail with Phoenix Connectors for HVDC distribution to two powered loads. Field Assembly Required
OVPBOX-4PC
Product Code: OVPBOX-4
IP67 Enclosure. Contains 4x CITEL OVP modules
One required per Receiver
OVPDIN-4
Product Code: OVPDIN-4
Hybrid Terminal Box kit, IP65 enclosure, 8x Copper Termination Blocks, 8x Fiber Optic Pigtails, 8x Fiber Optic Splice Sleeves, 4x Duplex LC Adaptors
OVP-MODULE-4
Product Code: OVP-MODULE-4
4x Individual CITEL OVP Modules ww/Ground Bus Bar not mounted
HBKIT-8F8C
Product Code: HBKIT-8F8C
Hybrid Terminal Box kit, IP65 enclosure, 8x Copper Termination Blocks, 8x Fiber Optic Pigtails, 8x Fiber Optic Splice Sleeves, 4x Duplex LC Adaptors
PDKIT-LVDC-4
Product Code: PDKIT-LVDC-4
Low Voltage DC Fusable Power Distribution Box Kit for RX54-2K; IP65 rated enclosure with one terminated, 3 conductor RX54-2K Output Cable Mate pre-terminated. Comes pre-populated with 4x 10A fuses. Also included are:
2x 20A/80VDC fuses
1x 25A/80VDC fuse
4x additional cable glands
4x Mounting screws
KITCBL-RX54-2K
Product Code: KITCBL-RX54-2K-01
RX54-2K Connectorized Cable Kit.
Input- 2x 8 Conductor, 8 pin female IP65 connector, 16AWG, 8ft long - Connects to RX54-2K input connector
Output- Single 2 Conductor, 2 pin male IP65 connector, 8AWG, 8ft long - Connects to RX542-K output connector
KITCBL-RX54-2K-Y
Product Code: KITCBL-RX54-2K-Y-02
RX54-2K Connectorized Cable Kit.
Input- 2x 8 Conductor, 8 pin female IP65 connector, 16AWG, 8ft long - Connects to RX54-2K input connector
Output- Splitter Y-cable. 2 Conductor, 2 pin male IP65 connector, 8AWG, 8ft long - Connects to RX542-K output connector
KITCBL-RX548
Product Code: KITCBL-RX548-02
RX548 Connectorized Cable Kit. - UV Rated
Input- 8 Conductor, 8 pin female IP65 connector. 8ft long - Connects to RX548 input connector
Output- 2 Conductor, 2 pin male IP65 connector. 8ft long - Connects to RX548 output connector
Input- 8 Conductor, 8 pin female IP65 connector. 8ft long - Connects to RX548 input connector
Output- 2 Conductor, 2 pin male IP65 connector. 8ft long - Connects to RX548 output connector
KITCBL-RX55x
Product Code: KITCBL-RX554-02
RX55x Connectorized Cable Kit. UV Rated
Input- 8 Conductor, 8 pin female IP65 connector. 8ft long - Connects to RX550 or RX554 input connector
Output- 3 Conductor, 3 pin male IP65 connector. 8ft long - Connects to RX554 or RX550 output connector
KITCBL-RXAC-C15
Product Code: KITCBL-RXAC-C15
RXAC Output Power Cord, C14 to C15 - Heavy Duty, 15A, 250V, 14AWG, 6ft, Black
KITCBL-RXAC-C15-Y
Product Code: KITCBL-RXAC-C15-Y
RXAC Output Power Cord, C14 to 2xC15 Y-Cable, Heavy Duty, 15A, 250V, 14AWG, 2.3ft, Black
KITCBL-RXAC-C19
Product Code: KITCBL-RXAC-C19
RXAC Output Power Cord, C14 to C19, Heavy Duty, 16A, 250V, 14AWG, 6ft, Black
