Digital Electricity™ Transmitters
Digital Electricity™ Transmitters convert conventional analog electricity into Digital Electricity™ for
distribution from a centralized source to many endpoint loads to energize your application.
VoltServer Transmitters are a component in a
Digital Electricity™ line powering system.

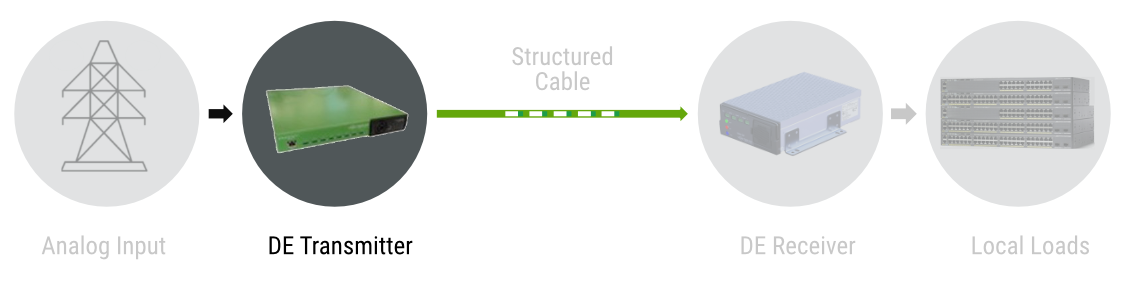

When paired with a VoltServer Receiver unit, a Digital Electricity™ system is formed.
VoltServer Transmitters are listed products, certified to safety and EMC standards by a Nationally Recognized Test Laboratory.
VoltServer Transmitters are listed products, certified to safety and EMC standards by a Nationally Recognized Test Laboratory.
Transmitter configurations are designed to support different input power options:
• 100-277 VAC Mains • High Voltage DC Microgrids • 48 VDC Battery Plants
PTX500E-DC
Product Code: PTX500E-DC
2U, DC powered, up to four 1350W Power Modules, 24 Slot Transmitter shelf, MGT500E Management module, and 1xPM500-48DC
PTX500E-DC-3U
Product Code: PTX500E-DC-3U-VS
3U, DC powered, up to eight 1350W Power Modules, 24 Slot Transmitter shelf, MGT500E Management module, and 1xPM500-48DC. 5x45 degree power and grounding lugs
PM500-48DC
Product Code: PM500-DC48-VS
1350W Power Supply Module for PTX500 or PTX500E

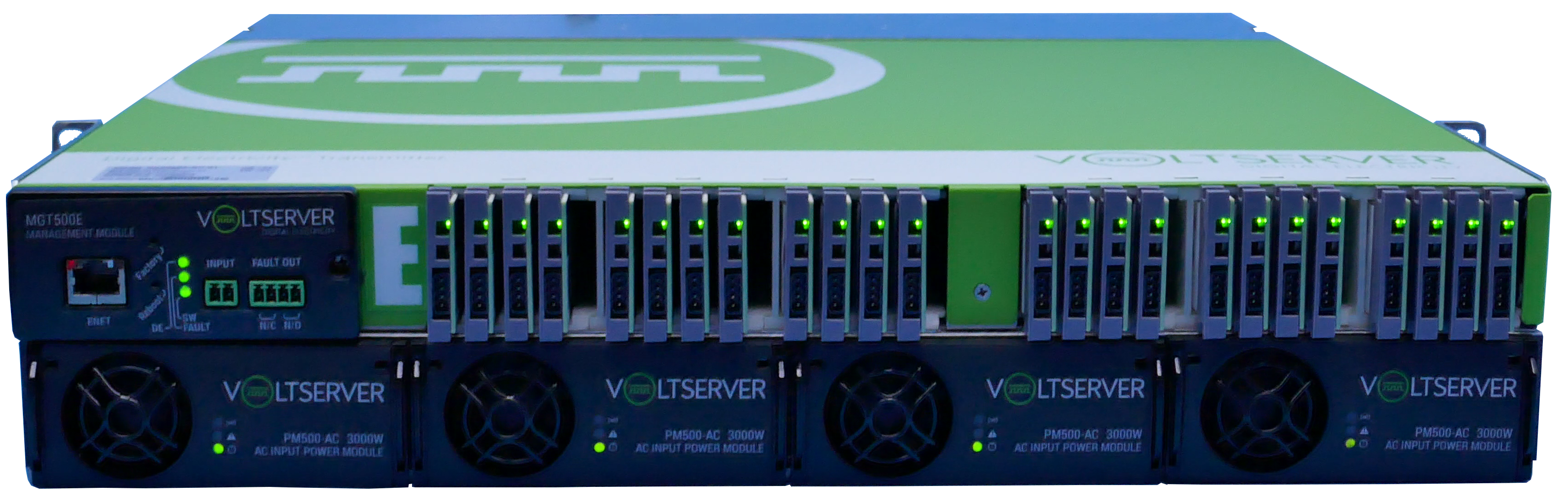

PCX500E-AC-02
Product Code: PCX500E-AC-02-VS
2U, AC powered, up to four 3000W Power Modules, 24 Slot Transmitter shelf, MGT500E Management module, and 1x PM500-AC - Rear cover with Conduit Knock-Outs on Rear and Side faces. For use with 1 inch (27mm) or 1.5 inch (41mm) Conduit
PM500-AC
Product Code: PM500-AC-VS
3000W Power Supply Module for PCX500, PCX500E and ETX8
PM500-COVER
Product Code: COVER-001
Front cover for empty DE Transmitter power module slots
ETX8-DW-IB
Product Code: ETX8-SA
1U, AC powered Transmitter Shelf, 3000W maximum aggregate output, 8 Digital Electricity Outputs - One C20 connector on Rear, up to 250VAC Input (Enterprise Applications)
TX550-01
Product Code: TX550-01-VS
DE Line Card for PTX and PCX Transmitters
CBL-TX-001
Product Code: CBL-TX550-01
TX550 to Phoenix Connector pre-terminated cable, 10Ft, 20AWG
TRMBLK-01-19-8
Product Code: TRMBLK-01-19-8
Transmitter Terminal Blocks & DIN Rail
Populated with 8 x 4 Pair Positions per 19" DIN Rail
OVPDIN-12
Product Code: OVPDIN-12
Primary Protection CITEL OVP
12 Pairs protected per 19" DIN Rail
OVPDIN-24
Product Code: OVPDIN-24
Primary Protection CITEL OVP
24 Pairs protected per 19" DIN Rail
